Inter- and intra-rater reliability of knee flexion angle measurements on X-ray and MRI

Introduction

Orthopaedic surgery often requires a comprehensive range of motion (ROM) assessment both preceding and following an operation to determine if treatment has facilitated improvement. Pre-operative ROM can be an indicator as to the results that can be achieved following surgery and post-operative ROM can be an indicator of function and of patient satisfaction (1). Therefore, it is important to measure these values reliably and accurately.

Reliability and accuracy are indicators of the validity of a measurement. An unreliable method of measurement is therefore unlikely to be valid (2). While accuracy of ROM measurements is widely discussed in orthopaedic literature (3,4), very little research has investigated the reliability of ROM measurements (5). A reliable measurement is one that can be repeated and a similar or identical result obtained. Reliable measurements of ROM allow different clinicians to arrive at the same conclusion, which is particularly important in the case of multiple referrals or poor documentation. Additionally, as patients with chronic musculoskeletal conditions are often followed-up over a long period of time, clinicians must be satisfied that any changes in ROM are due to improvement in the patient’s condition and not unreliable measurements. Intra-rater reliability evaluates the results measured more than once by the same observer (i.e., re-test reliability) whilst inter-rater reliability assess the consistency results are measured by a number of different observers.

One way of assessing ROM in the lower limb is by measuring the knee flexion angle (KFA) a patient can achieve at their extremes of flexion and extension. This can be physically measured using a goniometer or assessed with appropriate medical imaging technology, the most commonly used being X-ray or magnetic resonance imaging (MRI). Other more experimental imaging techniques which may be appropriate such as electrical linkage, sound-based or robotic measurements (6) are not readily available to clinicians. KFA measurements derived from imaging taken in greater extension have previously been proven to be more reliable than those taken from images with a greater degree of flexion (4).

The aim of this study was to assess and compare the intra- and inter-rater reliability of measuring KFA between X-ray and MRI. We present the following article in accordance with the MDAR reporting checklist (available at https://aoj.amegroups.com/article/view/10.21037/aoj-22-2/rc).

Methods

This study was exempt from Institutional Review Board (IRB)/Ethics Committee approval at South Tyneside District Hospital as it was a pragmatic study evaluating the existing routine clinical practice of the senior author (consultant orthopaedic surgeon). This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This retrospective observational study was part of a larger radiological study that investigated 80 patients (94 knees) who had undergone both X-ray and MRI imaging for varying clinical indications. Patients included in this study were under the care of a single consultant orthopaedic surgeon with a special interest in knee surgery, at a district general hospital. They underwent arthroscopic knee surgery after attending a specialist knee clinic and receiving clinical assessment and radiological investigations. Informed consent was obtained from all patients. Their demographics are detailed in Table 1. The lateral X-ray view and the T1-weighted sagittal MRI view images of each patient were used to measure KFA by two observers independently at two separate time points. The exact same X-ray image and MRI image was evaluated on both the first and second data collection periods to allow for re-test reliability to be calculated. At the time the study was conducted, Observer A (HS) was a fourth-year medical student and Observer B (SP) was a clinical research fellow (junior doctor). Both observers received formal training in calculating KFA from the senior author (consultant orthopaedic surgeon) and were provided with an identical measurement pro forma detailing the steps required to calculate KFA.

To reduce the potential for recall bias, each round of data collection was undertaken 8 weeks apart and both observers were blinded to each other’s results and also from their own first round of data collection. All radiological images were evaluated on the medical imaging platform Picture Archiving and Communication System (PACS) (Centricity version 6, GE Healthcare, Chicago) and the angle tool selected, which allows two lines to be drawn and an angle between them measured. If multiple images of the same patient’s knee were available, the image with the least degree of flexion (i.e., the more extended knee) was used, as this has been proven to produce greater accuracy and reliability when measuring the KFA (4). Lines were drawn along the distal anterior cortex of the femur and the proximal anterior cortex of the tibia, a method validated for determining the true KFA within 2 degrees (4). Because the PACS angle tool measures the angle between the two lines drawn, obtained values were subtracted from 180° to obtain the true KFA value (Figures 1,2).

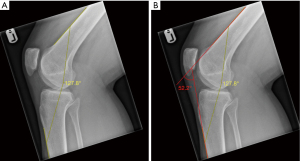

Figure 1 Lateral X-ray images of knee joint. (A) Annotated using PACS angle tool (yellow measurements). (B) Illustrated to show calculation of true KFA (red measurements). KFA, knee flexion angle.

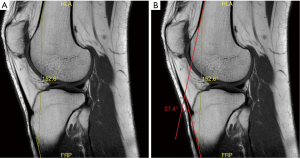

Figure 2 T1-weighted sagittal MRI images of knee joint. (A) Annotated using PACS angle tool (yellow measurements). (B) Illustrated to show calculation of true KFA (red measurements). MRI, magnetic resonance imaging; PACS, Picture Archiving and Communication System; KFA, knee flexion angle.

An MRI consists of multiple images arranged as slices. While the true KFA is constant throughout the scan, the landmarks used to measure the angle are not visible on every slice and their inclination can vary across different slices. To obtain consistency from the outset of the study in MRI evaluations, both observers agreed to begin by finding the sagittal slice in which the patella appeared largest (longitudinal dimension) and from there moving to the nearest slice where both the anterior cortex of the proximal tibia and distal femur were visible. Both observers also used the same bony landmarks on the femur and tibia for X-ray evaluations. This method was introduced to reduce error and variability by using a measurement system that was easily reproducible.

Statistical analysis

Plotted histograms with fitted curve lines, box-plots, normal Q-Q plots and the Kolmogorov-Smirnov statistic were used to confirm that a normal distribution was an appropriate assumption for all the continuous variables in the study. The paired Student’s t-test was used for the within group analysis. The inter- and intra-observer reliability of the KFA (continuous data) were determined using intra-class correlation coefficients (ICC). The ICC analysis was based on a consistency type two-way mixed model. The ICC results were further interpreted and categorised on the basis of the values proposed by Shrout and Fleiss (7) with a score of 0–0.4 indicating poor reliability, 0.4–0.75 indicating moderate reliability and a score of more than 0.75 indicating excellent reliability. The level of statistical significance was set at a two-sided P<0.05. Statistical analysis was performed using SPSS for Windows version 26.0 (IBM Corp., Armonk, New York).

Results

Table 2 shows the KFA analysis for Observer A. Overall, the mean KFA was notably higher on X-ray measurements than that on MRI as was the range of KFA values. There was a statistically (but not clinically) significant difference between Time 1 and Time 2 measurements for MRI data. No significant difference was found for X-ray measurements in this regard.

The intra-observer reliability for Observer A (Table 3) was notably higher for X-ray (0.96) than MRI measurements (0.83). Both groups achieved an excellent reliability grade (>0.75).

The measurements (mean (range)) obtained by Observer B (n=94) for X-ray KFA =47.1° (3° to 87°) and for MRI KFA =17.0° (3° to 37°). The inter-observer reliability between Observer A and Observer B (Table 4) was superior for X-ray (0.99) as compared to that of MRI measurements (0.81). Both groups achieved an excellent reliability grade (>0.75).

Discussion

Given the physical space limitations of an MRI coil, flexion is naturally limited, therefore the range of KFA measurements and the mean KFA was expectedly smaller on MRI than X-ray (Table 2). While measurements taken in greater degrees of extension have previously been proven to be more reliable (4), in this study a greater degree of reliability (Tables 3,4) was seen on X-ray measurements, which had a greater degree of flexion (Table 2). This implies that the method of imaging has a greater impact on reliability than the degree of flexion the image is taken in. Measuring the KFA from MRI is therefore notably less reliable than measuring it from X-ray, to the point that the benefit of most of the images being in greater extension is negated.

The difference in reliability can be explained by the nature of the imaging methods. Where X-ray is composed of a single image, MRI is composed of multiple slices. Although theoretically the KFA should be the same throughout all slices of an MRI, measurements require visualisation of certain bony landmarks on the femur and tibia (as described in the materials and methods section). Due to the three-dimensional nature of these structures, the inclination of the measured landmarks may vary on the specific slice used for measurement. Another major advantage of X-ray is its larger field of view of the image as compared to that of MRI which more readily identifies the anatomical landmarks required to measure the KFA. The excellent reliability grades seen in our results (Tables 3,4) are a positive reflection of the reproducibility of the measurement techniques used in this study.

In comparison to other studies, our results for X-ray demonstrate its superior reliability to physical goniometry (6,7) but roughly equivalent reliability to digital goniometry techniques (8). The benefit of physical goniometry is that it is inexpensive and can be conducted quickly and does not require radiological intervention (or exposure to radiation), however, it is rather user dependent. Most contemporary studies agree that X-ray is the gold standard method of KFA measurement (3,9), exhibiting a high degree of reliability, which concurs with our results.

The limitations of this study; although both observers followed a system when measuring the KFA on MRI scans, it is still possible that different slices could have been used for each measurement as the specific slice to be used was not agreed on. This could have caused the angle of inclination of the bony landmarks used to vary and therefore the KFA measured to differ. Although the effect of using different slices was intended to be minimised for this research study, it nonetheless simulates real-time clinical circumstances where clinicians would use different slices and therefore measure different angles. This would make measuring the KFA using MRI less reliable, which is reflected in our results (Tables 3,4). Although Table 2 shows a statistically significant difference for the MRI KFA comparison between Time 1 and Time 2, it is noted that the mean difference (0.9°) is not clinically significant. Furthermore, the mean difference of the X-ray KFA (0.8°) was only 0.1° less than that of MRI and was found not to be statistically significant. This raises the possibility of a Type I error for the MRI analysis. Another limitation of this study is the relative inexperience of the observers. In real-time clinical practice, it is usual for doctors of a more senior level to interpret radiological imaging in the outpatient clinics. However, both observers received formal training at the start of the study on calculating KFA from X-ray and MRI. Consequently, it is expected that the effect of this particular factor on the final results was minimised.

The clinical relevance of this study is summated by the finding that calculating KFA using X-ray is of greater reliability than using MRI. Although an MRI would never be ordered for the sole purpose of calculating KFA due to cost (among other limitations), a clinician ordering multiple imaging investigations may have chosen to measure the KFA at the limit of extension on MRI as a secondary function, if it had been more reliable to do so.

Conclusions

Both X-ray and MRI allow KFA to be measured with excellent reliability. However, it is notably more reliable to measure KFA using X-ray. The superior reliability of X-ray measurements were due to a larger field of imaging view and more readily identifiable bony landmarks which allowed for more reproducible results.
